Flymaster Live Ds

Name: Flymaster Live Ds - Paragliding Explorer Shop
Price: 550.00 GBP
Availability: InStock

£550.00

Category: Flymaster Variometers

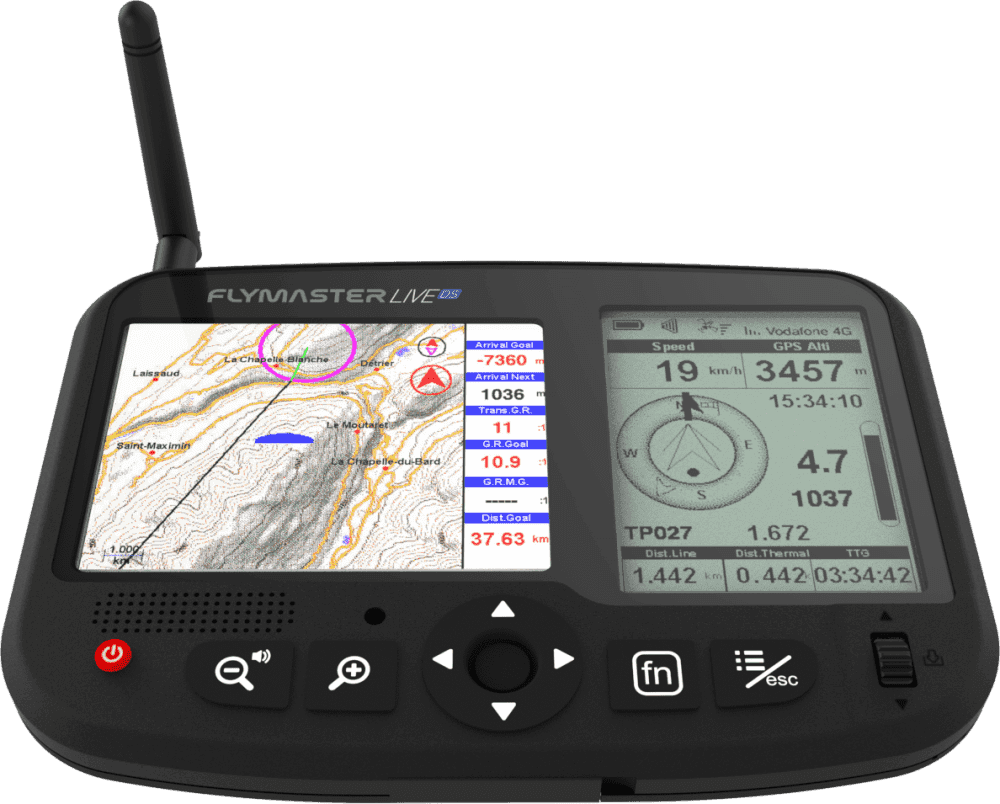

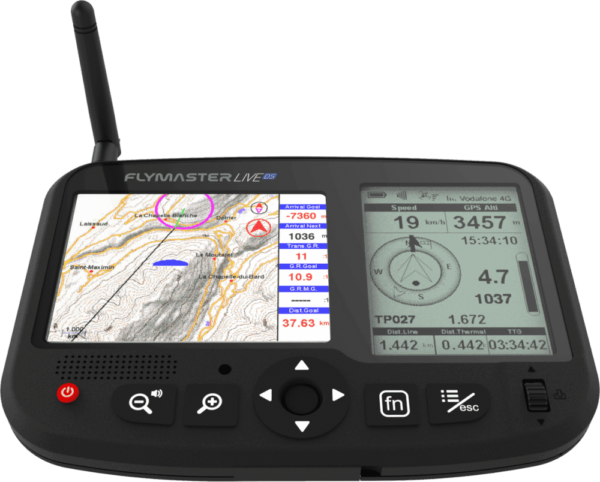

Flymaster Live Ds Variometer Your sixth sense in flight

The most complete free-flying instrument ever created. For the most demanding pilot, focused on winning, whether in competition or cross-country.

Display Type	Dual-screen – Reflective color (640×480) and reflective greyscale (320×240)
Battery Capacity (Lithium-Ion)	9000 mAh
Autonomy Learn more	Usually more than 24h
Size	186x132x18 mm
Weight	410 g
GPS	72 channel U-blox BeiDou, Galileo, GLONASS, GPS / QZSS
Native USB Connection	USB Type-C Mass Storage Access
Battery Charging	From wall adapter or standard usb port
GSM	Global Multi-band LTE-M
Bluetooth	Bluetooth 5 low energy module
Flarm	Flarm ready (optional Flarm Aware RX + TX mode)
Micro SD	Supports cards up to 256 GB
6 Axis accelerometer and magnetometer	Allows 6-degrees of freedom Tilt-compensated Compass)
Firmware update by USB (upgrades are free)

User definable pages (each page can be draw using Flymaster Instrument Manager, and include a number of elements only limited by space).	8 page sets
Configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, Color, …)	15
Configurable data field elements (User can change size, border, title, Font, Color, …)	85
Page Trigger Events (page switches automatically if a specific event occurs)	Airspace warning Entering thermal Transition (leaving thermal) Arriving at turn point Start opened Power up
Interface language	English
Configurable voice alerts	Airspace Turn point complete Start opened Goal Possible Distances Countdown time

Buzzer/near thermal sound
Ultra sensitive Variometer with 10 readings per second and 10 cm resolution
Configurable vario digital filter and integration values
Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,….)
Adjustable Sound Levels
Automatic mute, keeps vario silent until takeoff
Altitude adjustment using QNH
Automatic altitude adjustment from GPS
2 independent altimeters

Display of restricted areas in map
Adjustable voice warning of vertical distance to a restricted area
Adjustable voice warning of horizontal distance to a restricted area
Display of shortest vertical, and horizontal distance to restricted area
Restricted area voice alarms (Altitude imminent, Position imminent, Violation, …)
Critical Airspace page (displays information about areas that are closer than a defined distance)
Airspaces browser
Worldwide Airspace database

Exclusive Thermal Ball indicator
Several specific data fields like distance to take off, current and average glide ratio, average speed, etc.
Distance to last thermal indexed with altitude
Goto waypoint
Multiple waypoint route
Wind Speed and Direction (GPS based calculations)
Automatic altitude gain profiler
Nearby Landings (displays required glide ratio and distance to all the landings which can be reached)

Upload of flight data to repositories using the GSM network (compatible with several repositories like Leonardo XC server, XContest, DHV)
Automatic almost real time flight data sending to a remote live tracking server through GSM network. (compatible with several servers like Flymaster, LiveTrack24, DHV, etc)
On demand sending of predefined messages to a server (eg. Need Assistance, Need Retrieval, etc)
Automatic data receiving from a remote server like alarm messages, task definition, etc
Small LTE-M/GPRS data usage (considering that communication is not lost, in average, requires 25KB per flight/hour)

Compatible with MacOS (10.13 and higher), Windows (7/8/10)
