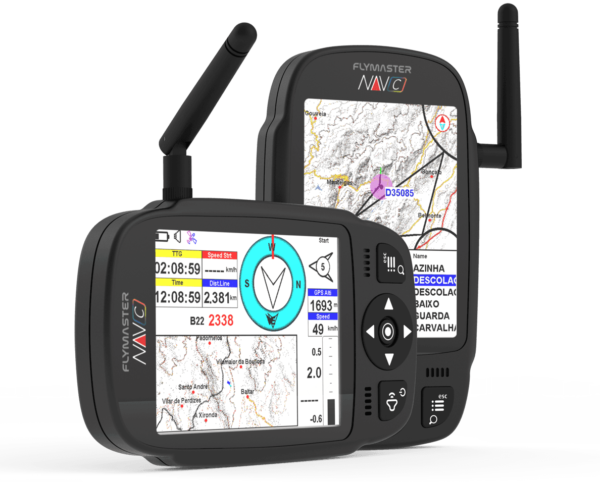

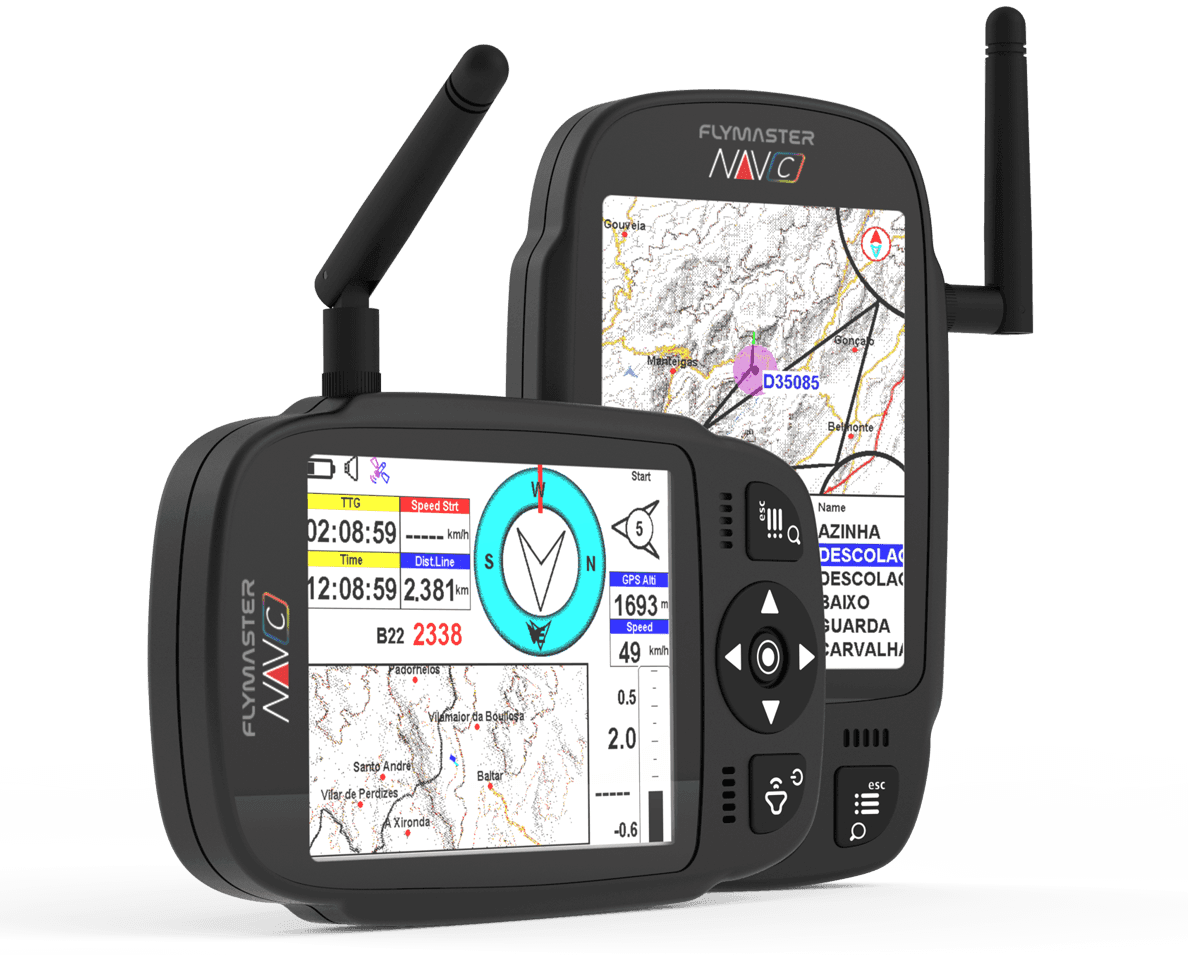

Flymaster NAV C

£450.00

Category: Flymaster Variometers

Description
Reviews (0)

Flymaster NAV C Or With Flarm from color. C from competition.

Introducing the Flymaster NAV C where the DNA of the NAV SD meets the spirit of the LIVE DS, resulting in a lightweight and versatile single-display marvel. It’s the ultimate fusion, offering the best of both worlds without compromising on performance. Embrace a new era of navigation excellence with the NAV C.

Main Hardware Characteristics of Flymaster NAV C

Display Type	Reflective colour 640x480px
Battery Capacity (Lithium-Ion)	6000 mAh
Autonomy Learn more	Usually more than 24 hours (environment conditions may alter this value)
Size	152x90x18 mm
Weight	200 g
GPS	72 channel U-blox BeiDou, Galileo, GLONASS, GPS / QZSS
Native USB Connection	USB Type-C Mass Storage Access
Battery Charging	From wall adapter or standard usb port
Bluetooth	Bluetooth 5 low energy module
FlarmFlarm	Flarm ready (optional Flarm Aware RX + TX mode)
Micro SD	Supports SDcards up to 256 GB
6 Axis accelerometer and magnetometer	Allows 6-degrees of freedom Tilt-compensated Compass)
Firmware update by USB (upgrades are free)

Interface Features

User definable pages (each page can be draw using Flymaster Instrument Manager, and include a number of elements only limited by space).	8 page sets
Configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, Color, …)	15
Configurable data field elements (User can change size, border, title, Font, Color, …)	85
Page Trigger Events (page switches automatically if a specific event occurs)	Airspace warning Entering thermal Transition (leaving thermal) Arriving at turn point Start opened Power up
Interface language	English
Configurable voice alerts	Airspace Turn point complete Start opened Goal Possible Distances Countdown time

Flymaster NAV C Variometer/Altimeter Features

Buzzer/near thermal sound
Ultra sensitive Variometer with 10 readings per second and 10 cm resolution
Configurable vario digital filter and integration values
Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,….)
Adjustable Sound Levels
Automatic mute, keeps vario silent until takeoff
Altitude adjustment using QNH
Automatic altitude adjustment from GPS
2 independent altimeters

Memory Features

3D flight logger IGC format

3D Airspace

The Flymaster NAV C map offers an intuitive visualization of restricted areas, ensuring easy identification and awareness of prohibited zones.
Adjustable voice warning of vertical distance to a restricted area
Adjustable voice warning of horizontal distance to a restricted area
Display of shortest vertical, and horizontal distance to restricted area
Restricted area voice alarms (Altitude imminent, Position imminent, Violation, …)
Critical Airspace page (displays information about areas that are closer than a defined distance)
Airspaces browser
Worldwide Airspace database

Maps

Detailed colored maps with topographic data
With configurable layers

Cross Country Features

Exclusive Thermal Ball indicator
Several specific data fields like distance to take off, current and average glide ratio, average speed, etc.
Distance to last thermal indexed with altitude
Goto waypoint
Multiple waypoint route
Wind Speed and Direction (GPS based calculations)
Automatic altitude gain profiler
Nearby Landings (displays required glide ratio and distance to all the landings which can be reached)

Competition Features

Route Optimization (indication for shortest route point)
Speed to Start (optimal speed to make the start)
Arriving altitude at next waypoint and goal (considering wind)
Several Glide Ratios (to goal, average, to next,…)
Easy task definition
Task Navigation, configurable safety/risk margin on turn points.
Task Map (trace with thermal indication)
